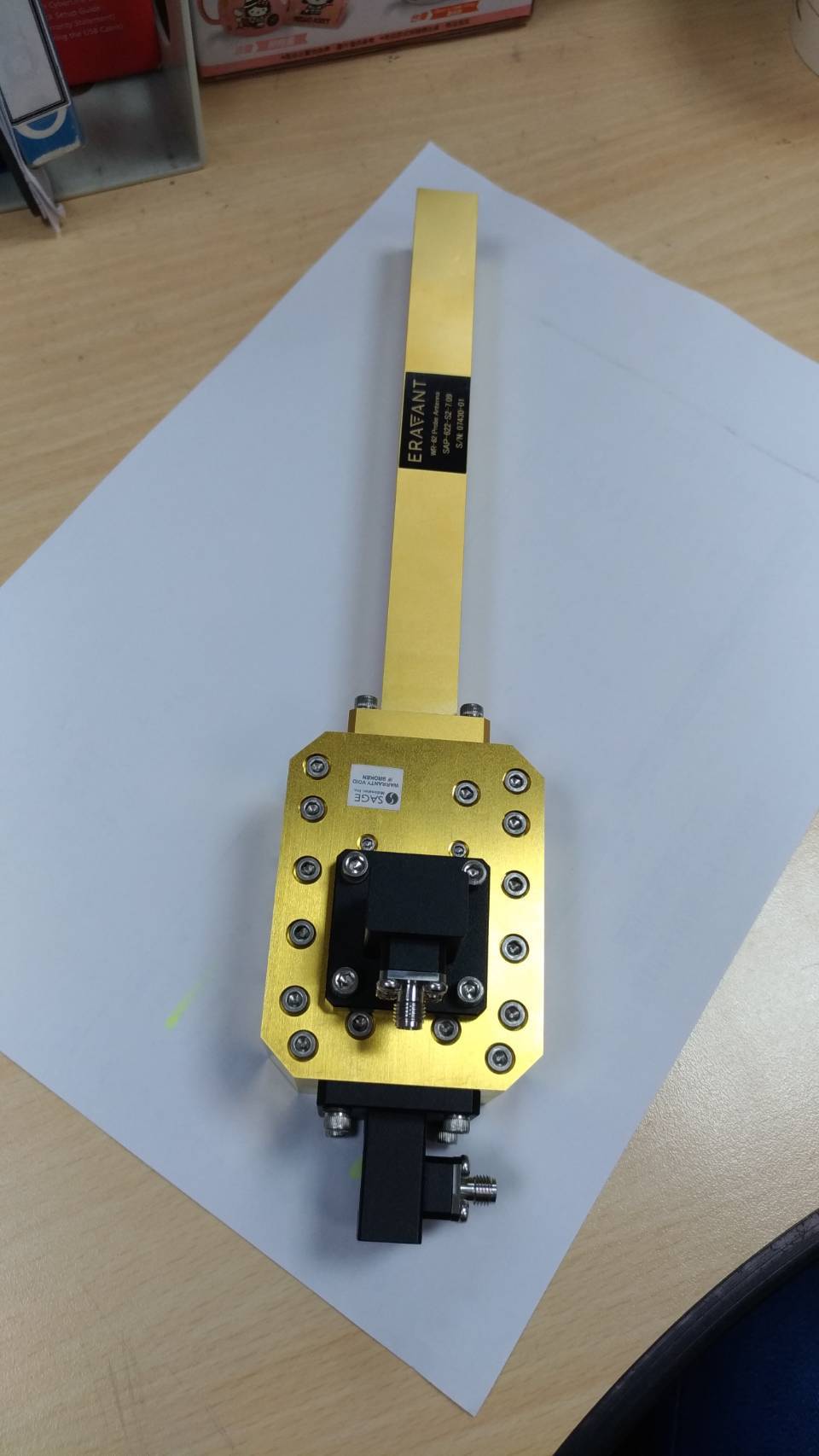

x-band_dual-Antenna
|
|
|
Model
|
|
|
|
|
|
Frequency
|
8.2 – 12.4GHz
|
|
Gain
|
4.0dB
|
|
Isolation
|
>35.0dB
|
|
VSWR
|
<1.5
|
|
3dB Beamwidth, E-plane
|
41.5°
|
|
3dB Beamwidth, H-plane
|
42°
|
|
Dimensions
|
347.9 x 100.9 x 91.55mm
|
|
Weight
|
2500g
|
|
Impedance
|
50Ω nominal
|
|
Operating Temperature
|
-40°C to 65°C
|
|
Power
|
+24VDC
|
|
DC Current
|
300mA
|
|
|

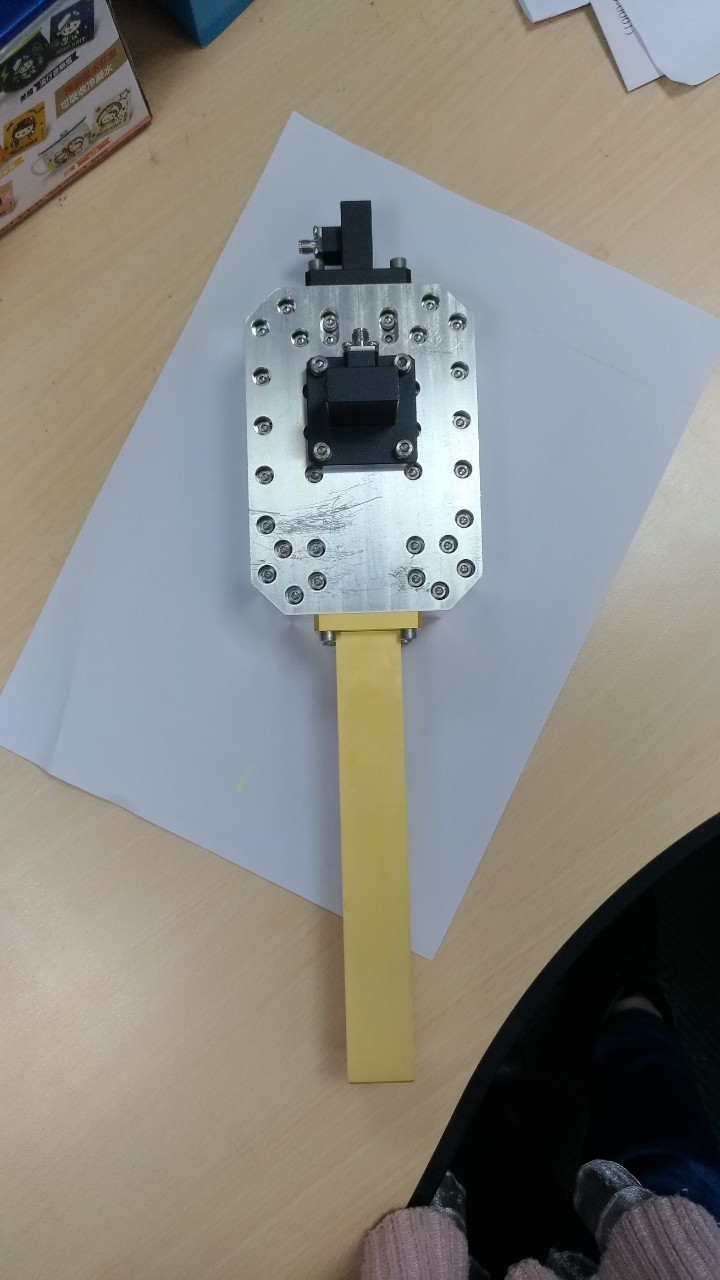

x-band_dual-Antenna relay
|
|
|
Model
|
|
|
Frequency
|
8.2 – 12.4GHz
|
|
Gain
|
9.0dB
|
|
Isolation
|
35.0dB
|
|
Phase(H port-V port)
|
0.5λ (10.3GHz)
|
|
VSWR
|
<1.5
|
|
3dB Beamwidth, E-plane
|
46°
|
|
3dB Beamwidth, H-plane
|
43°
|
|
Dimensions
|
342.9 x 88.9 x 79.5 mm
|
|
Weight
|
1390g
|
|
Impedance
|
50Ω nominal
|
|
Operating Temperature
|
-40°C to 85°C
|
|
|
18 to 26.5GHZ
|
|
Frequency
|
18 to 26.5GHz
|
|
Connector type
|
SMA jack
|
|
VSWR
|
Typically<1.4:1
|
|
Gain
|
8.4to11.6dBi
|
|
Power handling
|
20Watts c.w.
|
|
Weight
|
70 gms
|
|
Size-Max
|
22 x 14.3mm ext. aperture, 47mm long.
|
|
Mounting
|
4holes, diameter4.1mm
38mm between centres
|
|
|
|
|
Frequency
GHz
|
Gain
dBi
|
Antenna Factor
dB/m
|
|
18.0
|
8.4
|
46.9
|
|
20.0
|
9.2
|
47.1
|
|
22.0
|
10.0
|
47.1
|
|
24.0
|
10.7
|
47.1
|
|
26.5
|
11.6
|
47.1
|
|
|
|
|
|
26.5 to 40GHz
|
|
Frequency
|
26.5 to 40GHz
|
|
Connector type
|
K type 2.9mm
|
|
VSWR
|
Typically< 1.4:1
|
|
Gain
|
9.5 to 12.9 dBi
|
|
Power handling
|
10Watts c.w.
|
|
Weight
|
86gms
|
|
Size-Max
|
17.6 x 13.3mm ext. aperture, 64mm long
|
|
Mounting
|
4 holes, diameter 4.1mm
38mm between centres
|
|
|
|
|
|
Frequency
GHz
|
Gain
dBi
|
Antenna Factor
dB/m
|
|
|
26.5
|
9.5
|
49.2
|
|
|
30.0
|
10.5
|
49.3
|
|
|
34.0
|
11.6
|
49.3
|
|
|
37.0
|
12.3
|
49.3
|
|
|
40.0
|
12.9
|
49.4
|
|
|
|
|
|
Ka Band
|
U Band
|
|
24GHz ~ 40GHz
|
40GHz ~ 60GHz
|
|
|
|
|
Product name: Corrugated Horn Antenna
Model: CHA2440
Frequency: 24GHz~40GHz
VSWR: ≦1.5
Dimensions: (L)52.5mm* Ø25.0
Weight: around 5g
Corrugated Horn Antenna 24 to 40 GHz is widely set-up with TRC CATR into Flying CATR and 5G Box, used for
5th generation mobile communication measurement like base-station location simulator, system Evaluation, system calibration etc.
|
Product name: Corrugated Horn Antenna
Model: CHA4060
Frequency: 40GHz~60GHz
VSWR: ≦1.5
Dimensions: (L)47.5mm* Ø28.6
Weight: around 5g
Corrugated Horn Antenna 40 to 60 GHz
is widely set-up with TRC CATR, used for Radar test or 802.11ad measurement like Target Simulator, System Evaluation, System Calibration etc.
|
|
V Band
|
E Band
|
|
50GHz ~ 75GHz
|
70GHz ~ 90GHz
|
|
|
|
|
Product name: Corrugated Horn Antenna
Model: CHA5075
Frequency: 50GHz~75GHz
VSWR: ≦1.5
Dimensions: (L)40.0mm* Ø19.1
Weight: around 5g
Corrugated Horn Antenna 50 to 75 GHz is widely set-up with TRC CATR into Radar Box, used for Radar measurement like Target Simulator, System Evaluation, System Calibration etc.
|
Product name: Corrugated Horn Antenna
Model: CHA7090
Frequency: 60GHz~90GHz
VSWR: ≦1.5
Dimensions: (L)21.5mm* Ø19.0
Weight: around 5g
Corrugated Horn Antenna 70 to 90 GHz is widely set-up with TRC CATR into Radar Box, used for Radar measurement like Target Simulator, System Evaluation, System Calibration etc.
|
