Weight |
About 450KG |
Size |
2.9M(L)(including the module beside the cell)*1.6M(W)*2.1M(H) (including the height of the wheel) |
Rated voltage |
110/220V |
Function
|
1. 2D/3D Antenna Pattern Measurement
2. 802.11a+b/g+n+ac Throughput Throughput Measurement
3.TRP / TIS Measurement
4. EMI Standard 700MHz~40GHz
|
Isolation |
> 100dB @ 800MHz~6000MHz |
Quiet Zone |
30cmx30cm +/- 0.5dB |
-

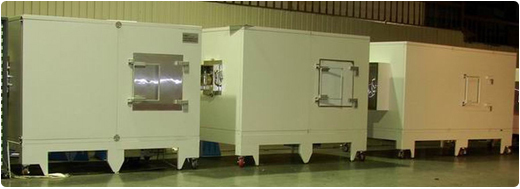

Mini-size chamber (2.9M(L)(including the module beside the cell )*1.6M(W)*2.1M(H) (including the height of the wheel)) which can be placed in the office.
-
The cell is accompanied with the wheel, and can be moved easily.
-
Exclusive way of installation – The cell can be easily installed and disassembled. (It takes about 1.5 hours to install or disassemble the cell.)
-
Using Emerson & Cuming absorber
-
The set of the whole test system in vertical cell is exclusively developed by TRC, ant the test software can be compatible with the equipments from all EDA corporations, and provide the customer-driven service.
-
The modularized design for the antenna and turntable.---It’s convenient to maintain and upgrade the system.
-
Provide many automatic test items such as 2D/3D antenna pattern, GSM/WCDMA/CDMA/TD-SCDMA/BT TRP/TIS for free space with phantom ,WLAN(802.11a+b/g+n+ac) and BT throughput measurement and EMI above 1GHz) for customers.
-
Now there are many ODM, OEM, and the antenna industries using vertical cell to conduct the OTA tests.
|
Total radiated power (TRP),
Total isotropic sensitivity (TIS)
Effective isotropic radiated power (EIRP)
Effective isotropic sensitivity (EIS)
Near-horizon partial radiated power (NHPRP)
Near-horizon partial isotropic sensitivity (NHPIS).
The vertical cell provides the simulated environment of the standard chambers, so the customers can save time from going to other laboratories for testing. |
Attributes
Minimum testing frequency |
700 MHz |
Maximum testing frequency |
6 GHz |
The frequency range for the antenna |
700 MHz - 6 GHz
Measurement Antenna Model 3164-04 or equivalent |
|
Specifications
Weight
|
680 kg ( 1,499.13 lb )
|
 |
Testing distance
|
1.5 m (4.92 ft)
|
turntable
|
Accuracy 0.2 deg
Uncertainty 0.1 deg
|
Power requirement for the system
|
208-240 VAC
50-60 Hz 10A
NEMA 6-15
|
Power requirement for the DUT
|
115/230 VAC
50-60 Hz 5A
NEMA 5-15
|
Isolation
|
90 dB
|
|
|
