| 產品型號 |
SNA |
| 產品尺寸 |
36cm(L)x43cm(W)x13cm(H) |
| 測量頻段 |
GSM、WCDMA、WLAN、LTE、GPS、WIMAX
|
| 適用產品 |
NB、LCD panel、HDD、ODD、SSD
|
| 功能 |
量測待測物系統雜訊、支援國際大廠規格 |
|
特點
|
自我校正、無需頻譜針對各通訊頻帶快速量測
SNA PLUS包含了VSWR check的功能，可於測試前確認天線功能是否正常
|
 |
|
Feature：
- Meet different ODM RF noise test requirement(contain NB, LCD panel, HDD, ODD, SSD…).
- All test can be completed without spectrum analyzer.
- Auto calibrate at different path.
- Provide faster test method for debugging.
- Save format can be compatible to different ODM report.
- Module conductive sensitivity test with de-sense test.
|
| Specification： |
|
Frequency ranges
|
GSM/WCDMA/LTE/GPS/WLAN/WiMAX/DTV receiving bands |
| Dynamic range |
GSM/WCDMA/LTE/GPS -100 dBm ~ -120 dBm WLAN/WiMAX： -100 dBm ~ -115 dBm |
| Amplitude accuracy |
+/- 1 dB |
Selectivity
|
1:4 |
| Resolution bandwidth |
200 kHz |
| Trace points |
According to different receiving bands |
|
|
| |

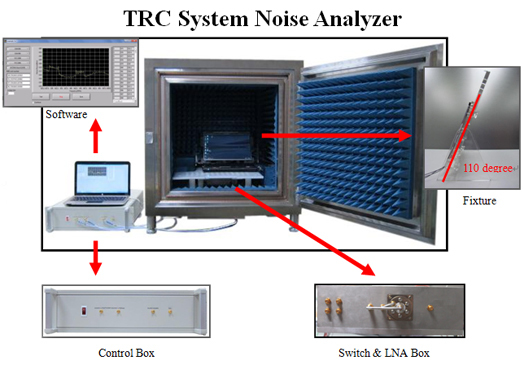

SNA Options
| Receiver |
A.TRC receiver module with control box
(GSM/WCDMA/LTE/GPS/WLAN/WiMAX)
B.Qualcomm 3G card (WWAN/GPS) |
| Software |
A.TRC SNA with path calibration software
B.Qualcomm WWAN noise measurement software
C.VSWR function |
| Fixture |
A.10.1”~15.6” LCD panel test fixture
(contain WWAN & WLAN/WiMAX antenna)
B. HDD, ODD, SSD test fixture |
| Dummy card |
For NB noise measurement |
|

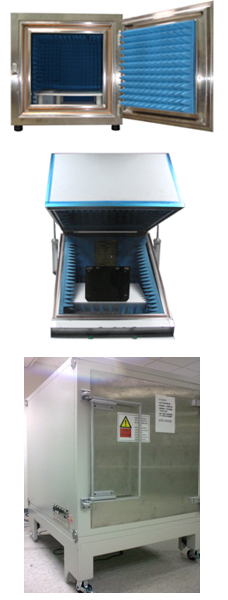

Shielding Box
A.SB10
Dimension:85cm(L)x85cm(W)x90cm(H) |
 |
B.SB13
Dimension:85cm(L)x100cm(W)x85cm(H) |
| C.VC07 Dimension:160cm(L)x160cm(W)x170cm(H) |
|
|
