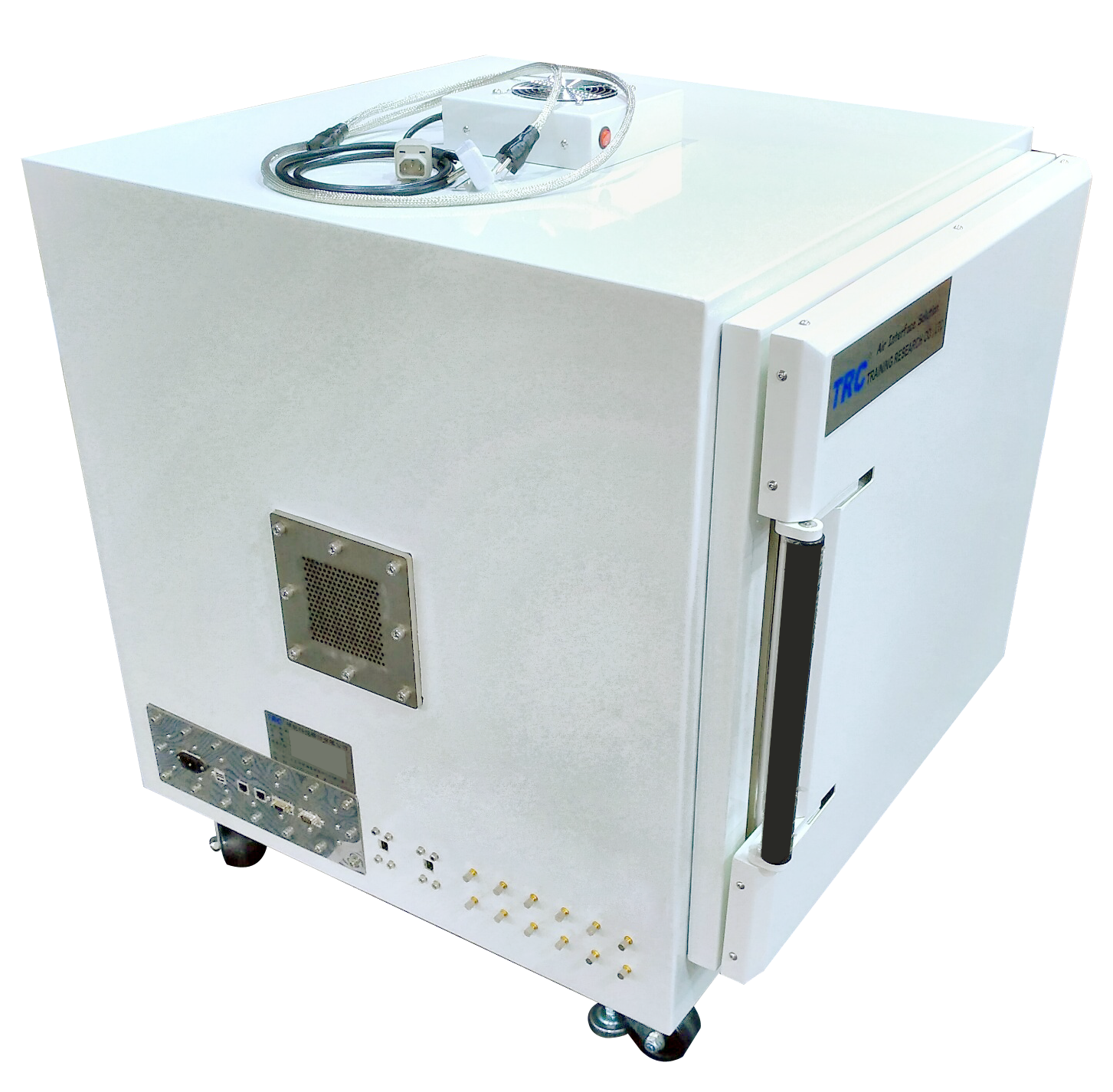

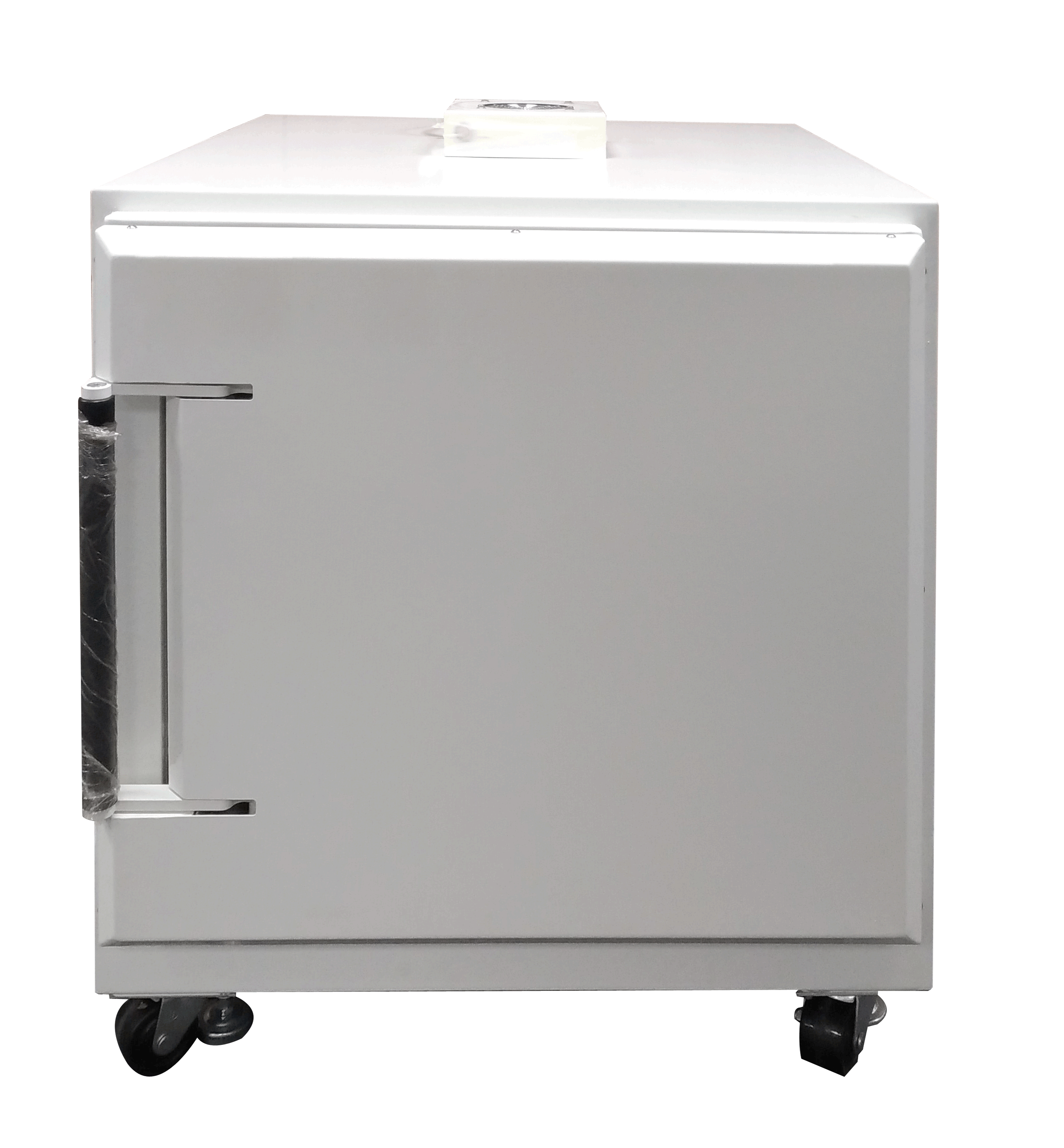

Shielding Box (SB26)
| Product Name |
Model |
Dimensions |
Isolation |
Power |
| Shielding Box |
SB26 |
80cm(L)x80cm(W)x80cm(H) |
>80dB |
110V~220V |
| Function |
Operational Principle |
|
To prevent external radio interference.
|
Put the DUT into the shielding box and connect it to the other device inside by RF cable so that the test results cannot be affected by the external signal. |
| Product Name |
Shielding Box |
| Model |
SB26 |
| Weight |
100KG |
| Dimensions |
80cm(L)x80cm(W)x80cm(H) |
| Specification |
A. Interface filter:
- AC Power (Maximum 110V~220V, 5 amp current)
- Two USB port
- Two LAN port
- One D-SUB 9port (COM)
- One D-SUB 15port (VGA)

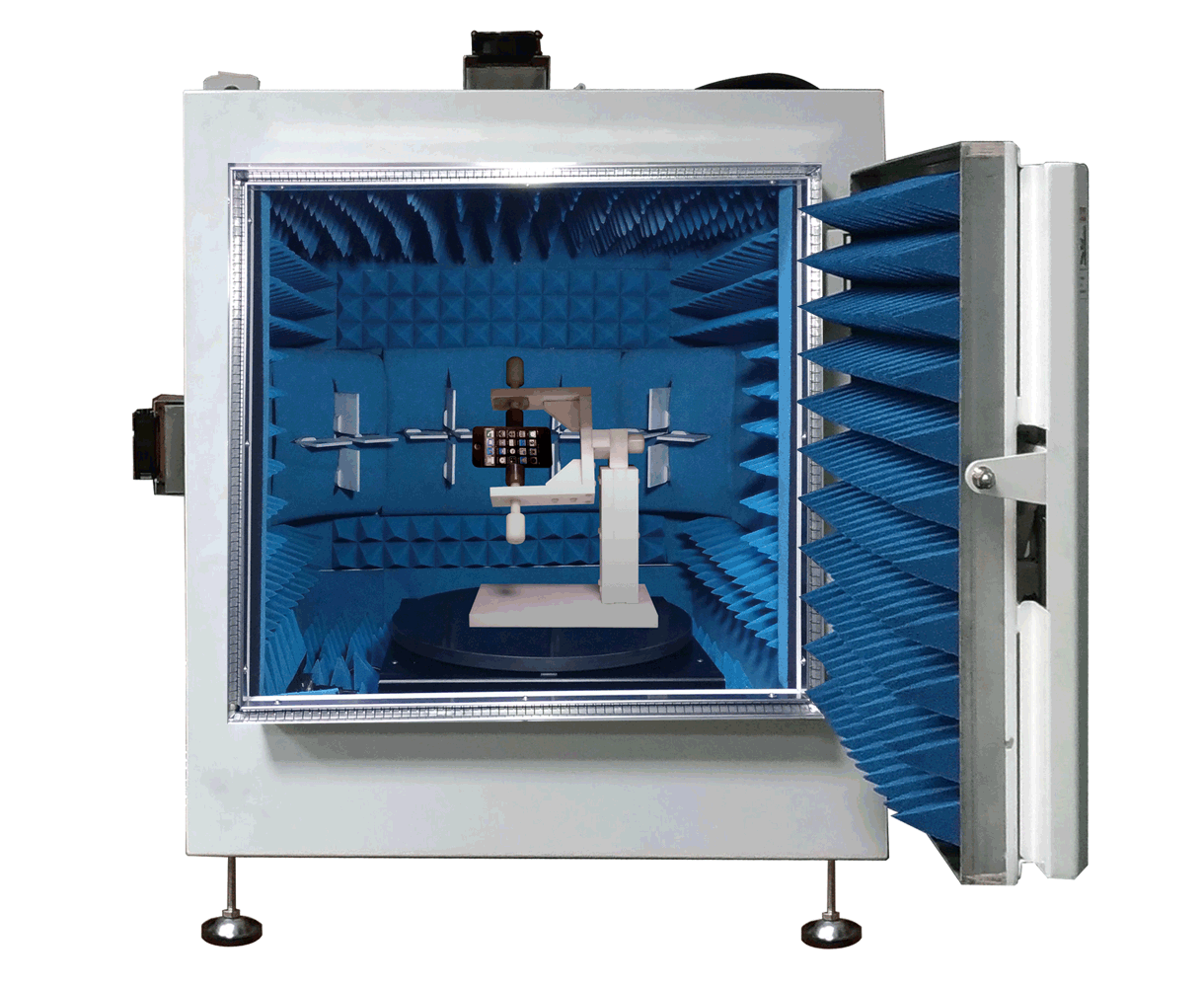

B. Internal lining the absorber
- Full of Absorber
Testing report for shielding effective Minimum Isolation >80dB |
Beautiful paint, smooth surface
It can be designed for Desense, MIMO, WIFI measurement devices etc.
If the above specification must be customize for you, please email to us.
|
