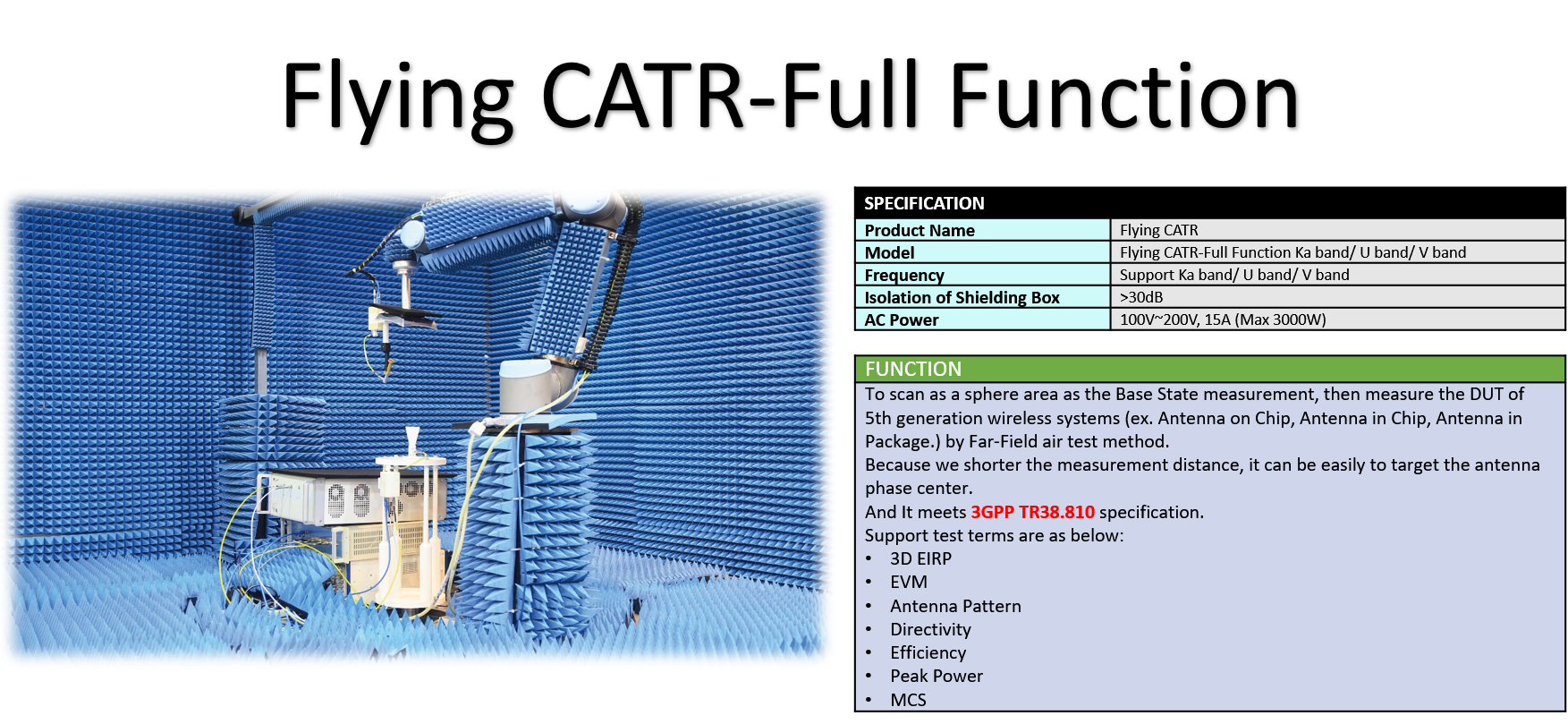

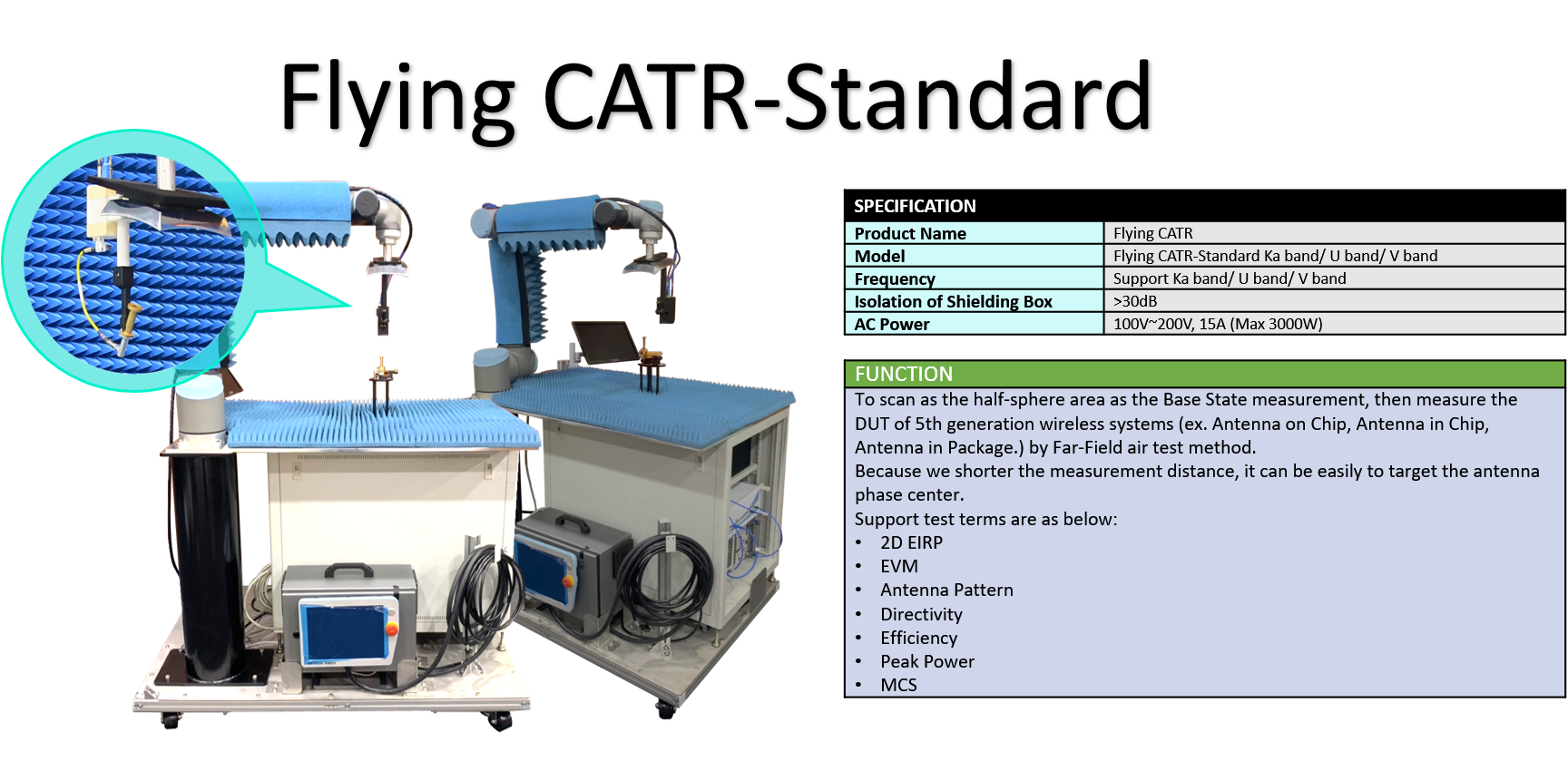

FUNCTION

1.         Support 5th Generation wireless system &

           77G Radar.

2.         Beamforming antenna measurement.

3.         Over-The-Air (TRP/TIS) measurement.

4.         TX/RX measurement.

5.         Automatic adjust the spherical coordinate

           center as AUT phase center.

6.         Antenna (2D 2min, 3D 15min 1° step).

7.         Maximum Resolution : 0.1°.

8.         Far-Field measurement.

9.         Gain repeatability：± 0.3dB.

10.      Typical dynamic range：50dB.

FEATURES

1.         Support mmWave frequency 10 to 110 GHz.

2.         Modules Available for 24GHz, 28GHz, 38GHz,

           60GHz, & 77GHz.

3.         High accuracy positioners.

4.         Complete 3D characterization.

5.         Far-Field measurement.

6.         Hanging Type/Slider Type/Stand Type.

7.         MWS quiet zone: 7X7 cm (normal).
