可程式衰減器
  •
    TRC Programmable Attenuator

    Attenuation range : 60 dB
    Fine attenuation resolution : 1 dB
    8 to 8 path attenuation / 4 to 4 path attenuation
    USB control
    Good isolation
    Support 802.11a/b/g/n/a/ac/ax MIMO Throughput /~Wi-Fi 6E
    0.1dB signal compression
    +33dBm Instantaneous power

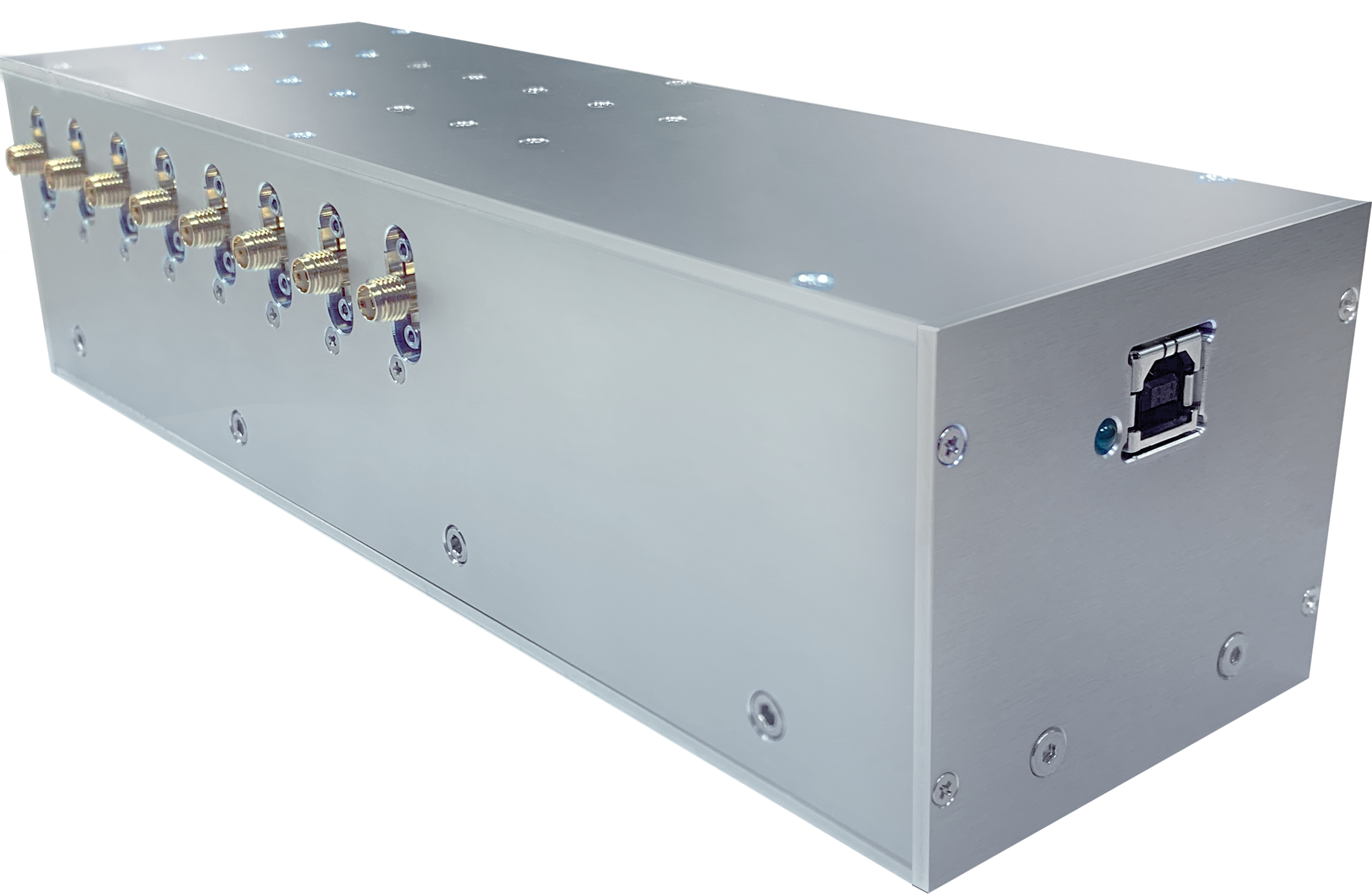

    PA 8X8 (2.4-7.2G)

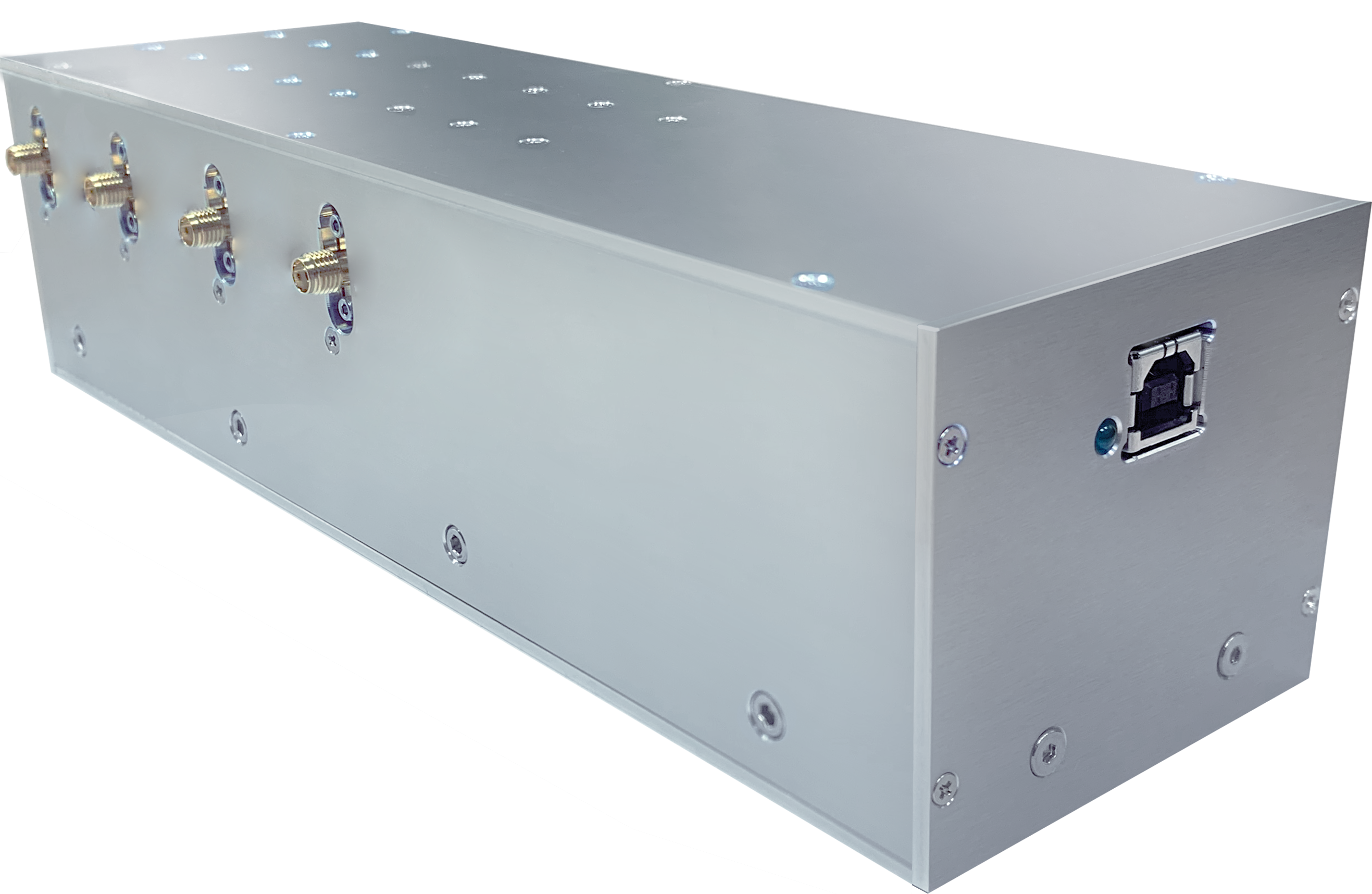

    PA 4X4 (2.4-7.2G)
    Model
    PA 8X8 (2.4-7.2G) / PA 4X4 (2.4-7.2G)
    Frequency
    2.4~7.2GHz
    Attenuation range
    60 dB
    Dimensions
    166.8(L) X68(W) X101.8(H)mm
    Weight
    1.4KG
    Input 2400 to 7200 MHz
    +33dBm
    Output 2400 to 7200 MHz
    +27dBm
    DC Power by USB
    5Vdc
    Storage Temperature
    -20°C to 85°C
    Operating Temperature
    0°C to 50°C

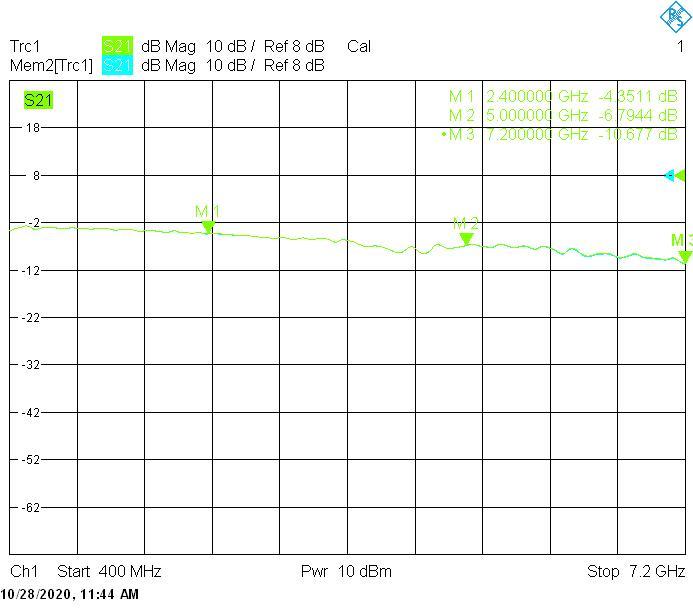

  • Test Data

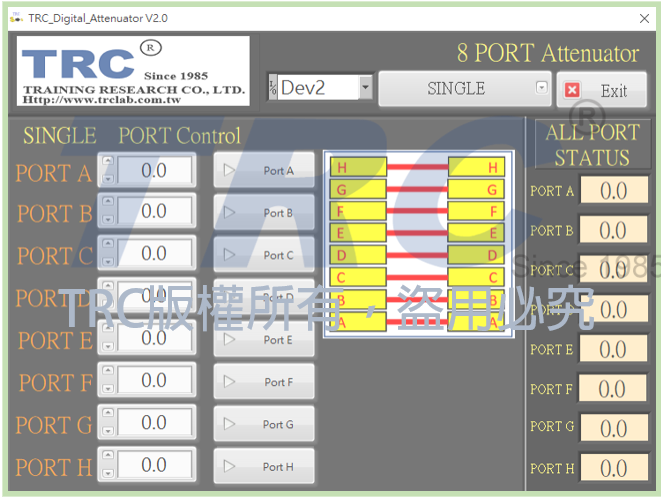

  • Control Software
