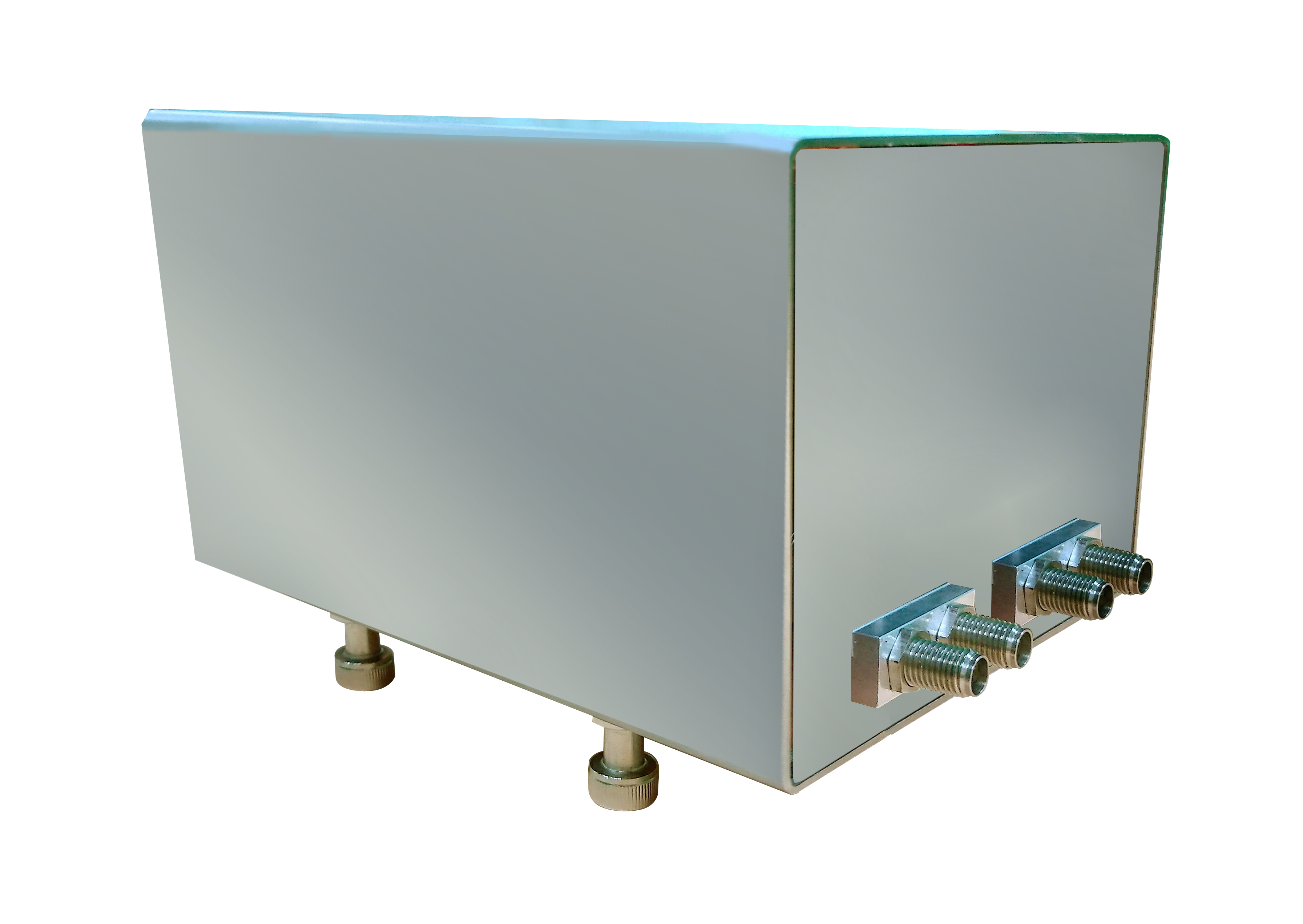

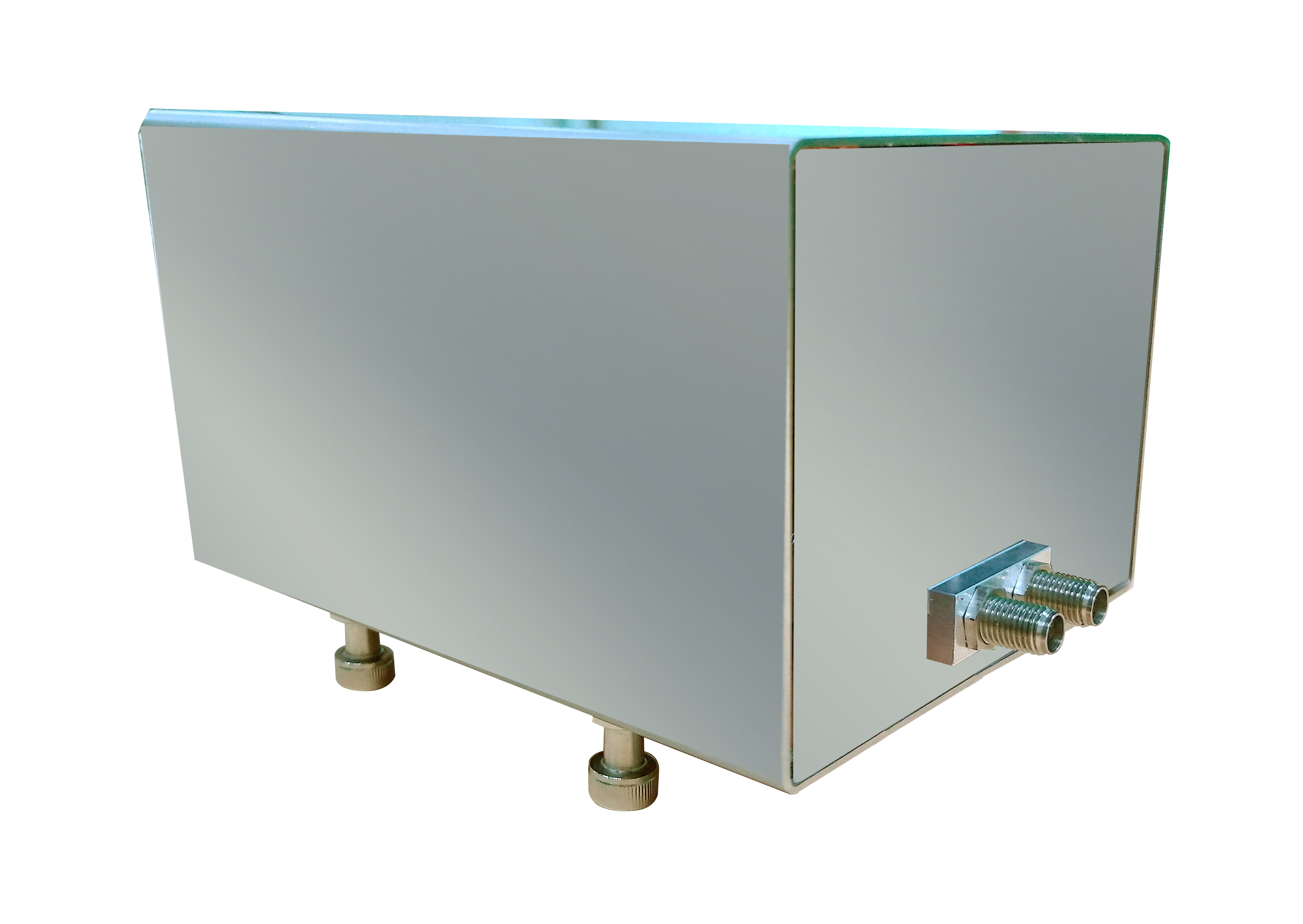

毫米波量測系統的放大器模組.
|
|
|
Model: MMWPA-L-IP3(26.5-40G)
|
|
Frequency: 26.5GHz~40 GHz
|
|
Gain Max. 34 dB
|
|
Input VSWR(Max): <2.5
|
|
Maximum Output VSWR at each ports: <1.7
|
|
Maximum Power Output at each ports: +20dBm
|
|
|
|
Amp unbalance: <0.5 dB
|
|
Phase unbalance: <10 degree
|
|
Dimensions: (L)11cmX (W)9cmX (H)6.5cm
|
|
Weight: 500g
|
|
DC power: 12V / 2250 mA
|
應用：用於毫米波轉換器的低IP3 LO功率分配器，為多個緊湊型測量天線生產測試.
- 每一件出貨皆有出廠前測試
- 細心包裝
- 優良的售後服務
|
