Ideal Multi-User MIMO measurement environment

802.11ax debugging & 802.11ac wave 2 qualification

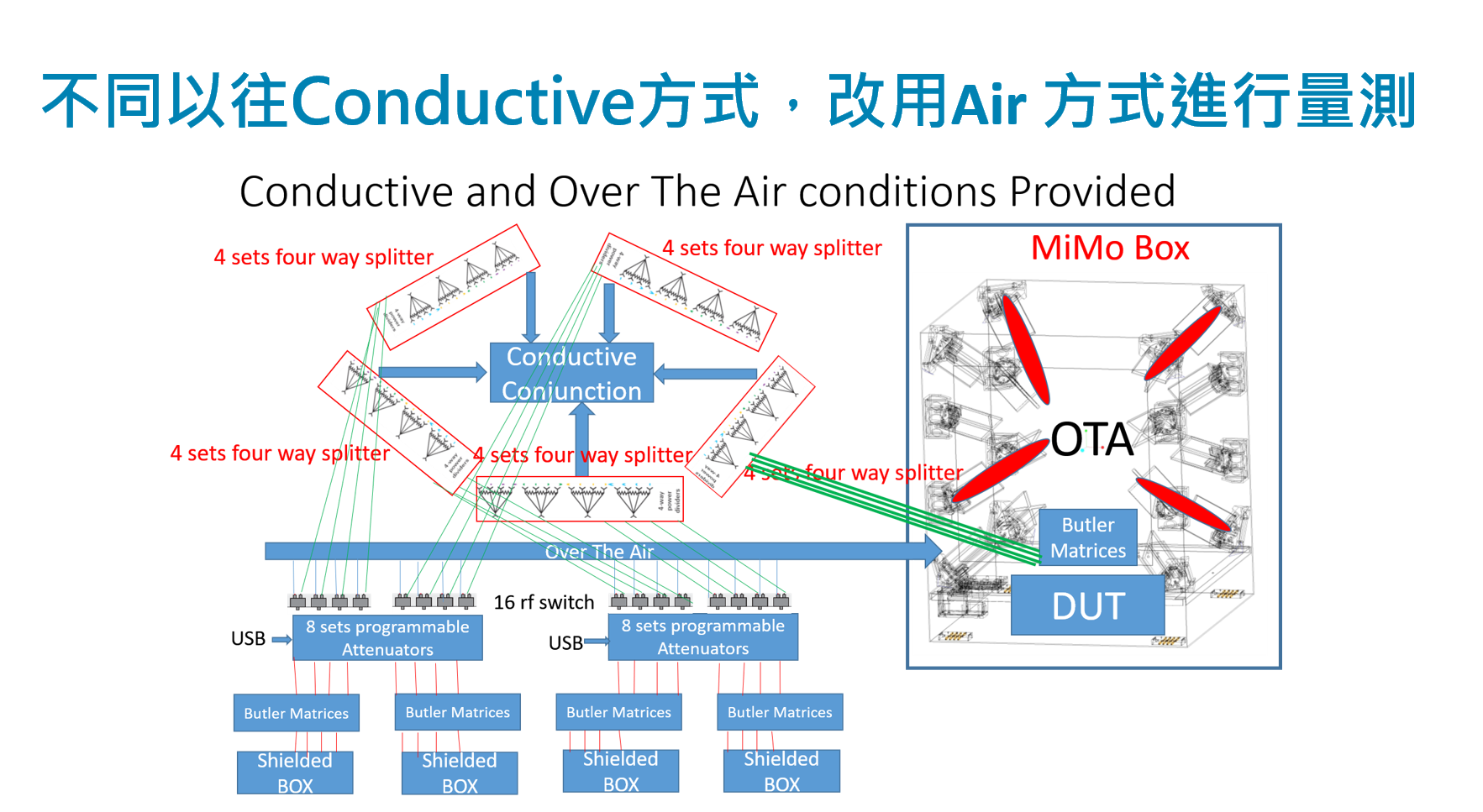

New Solution for 802.11ax

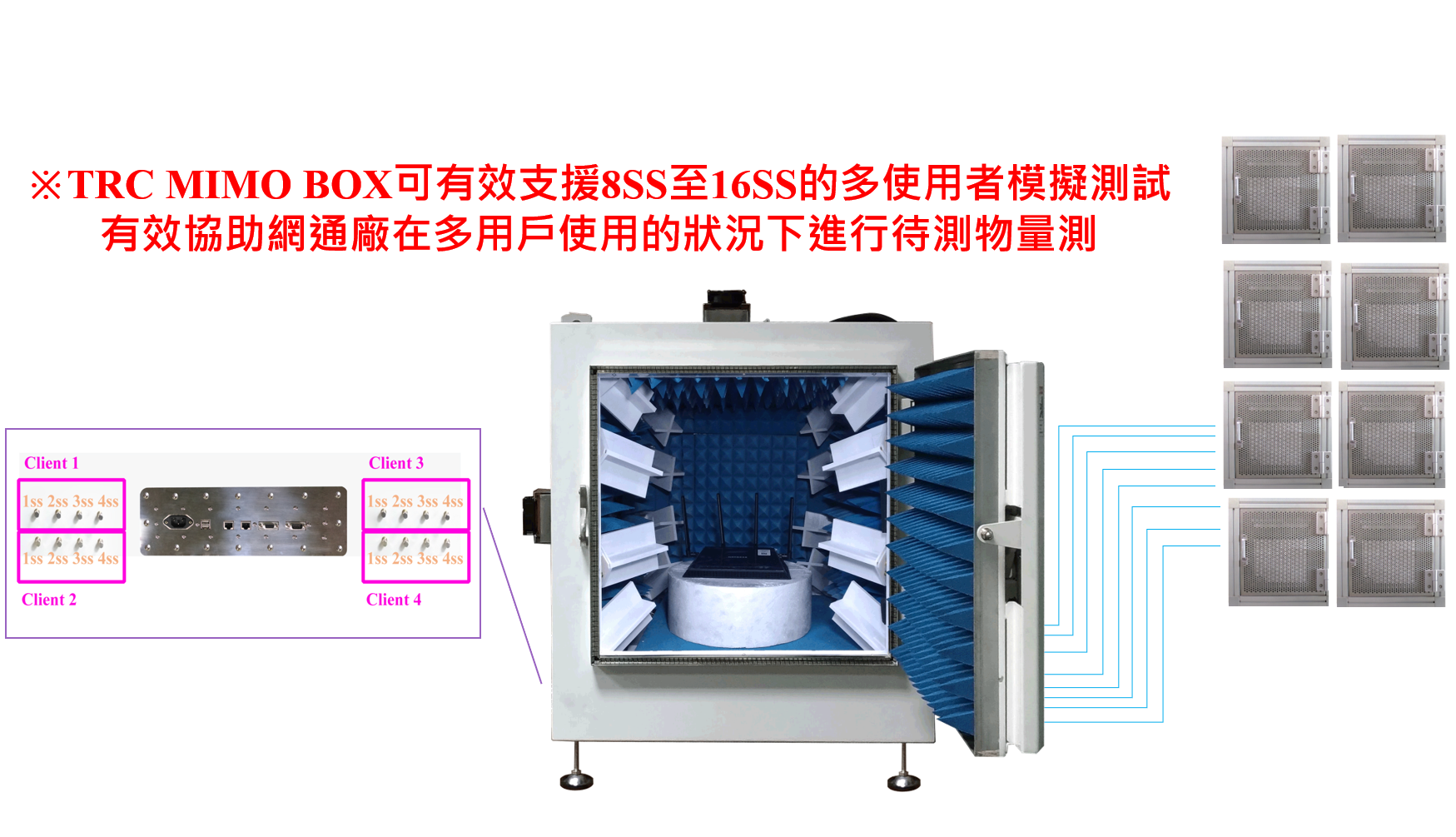

Product Description

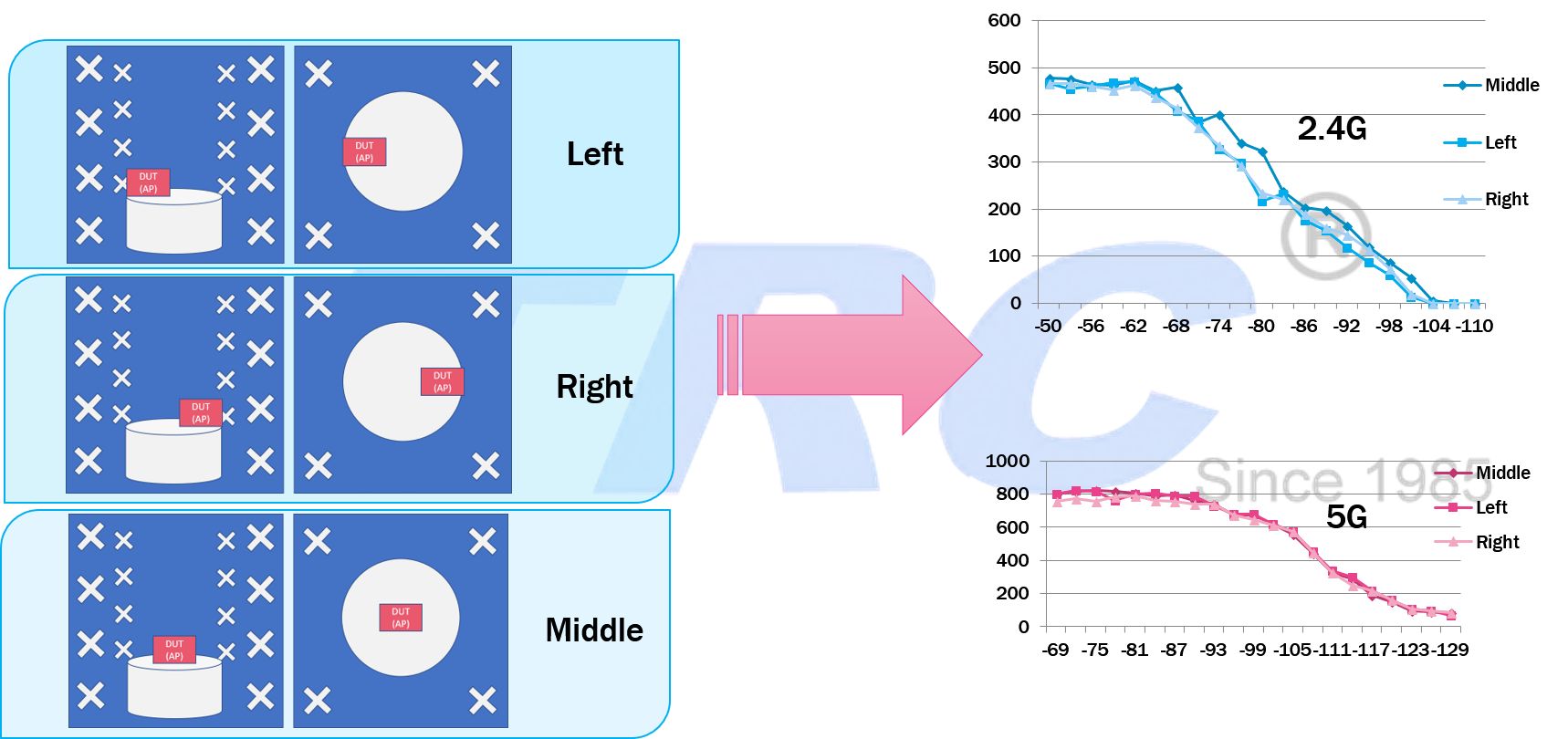

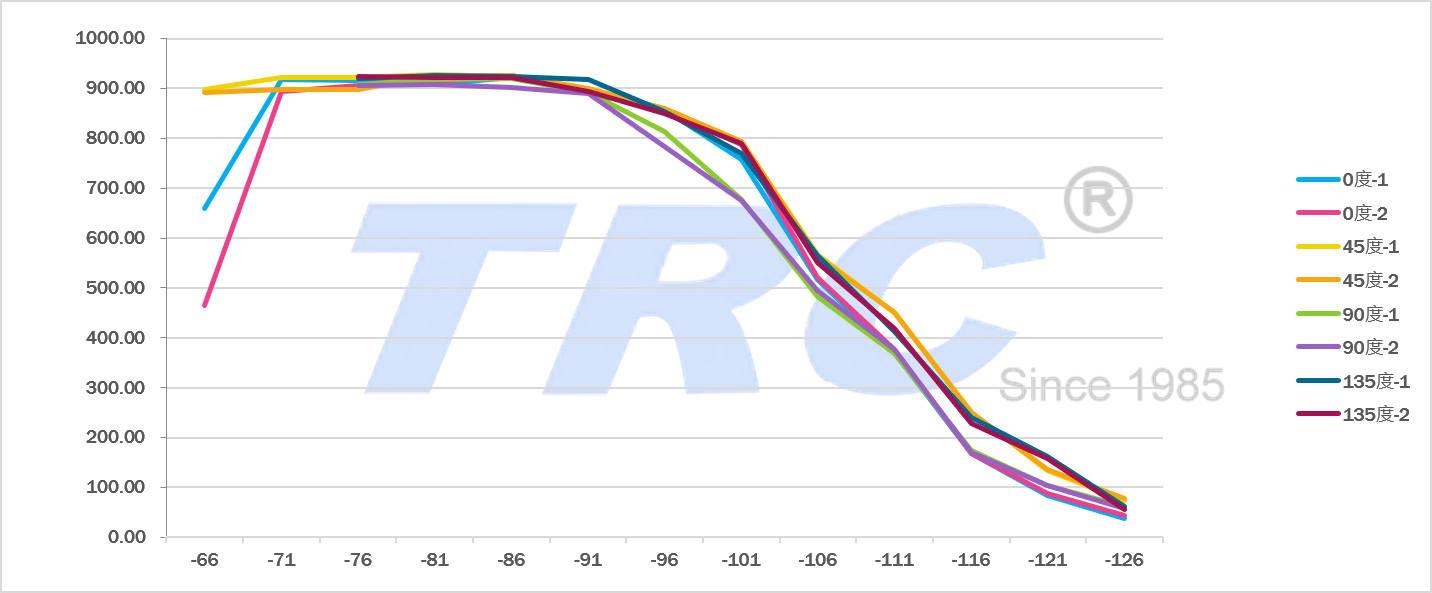

Test & Validation

TRC MIMO BOX Specification

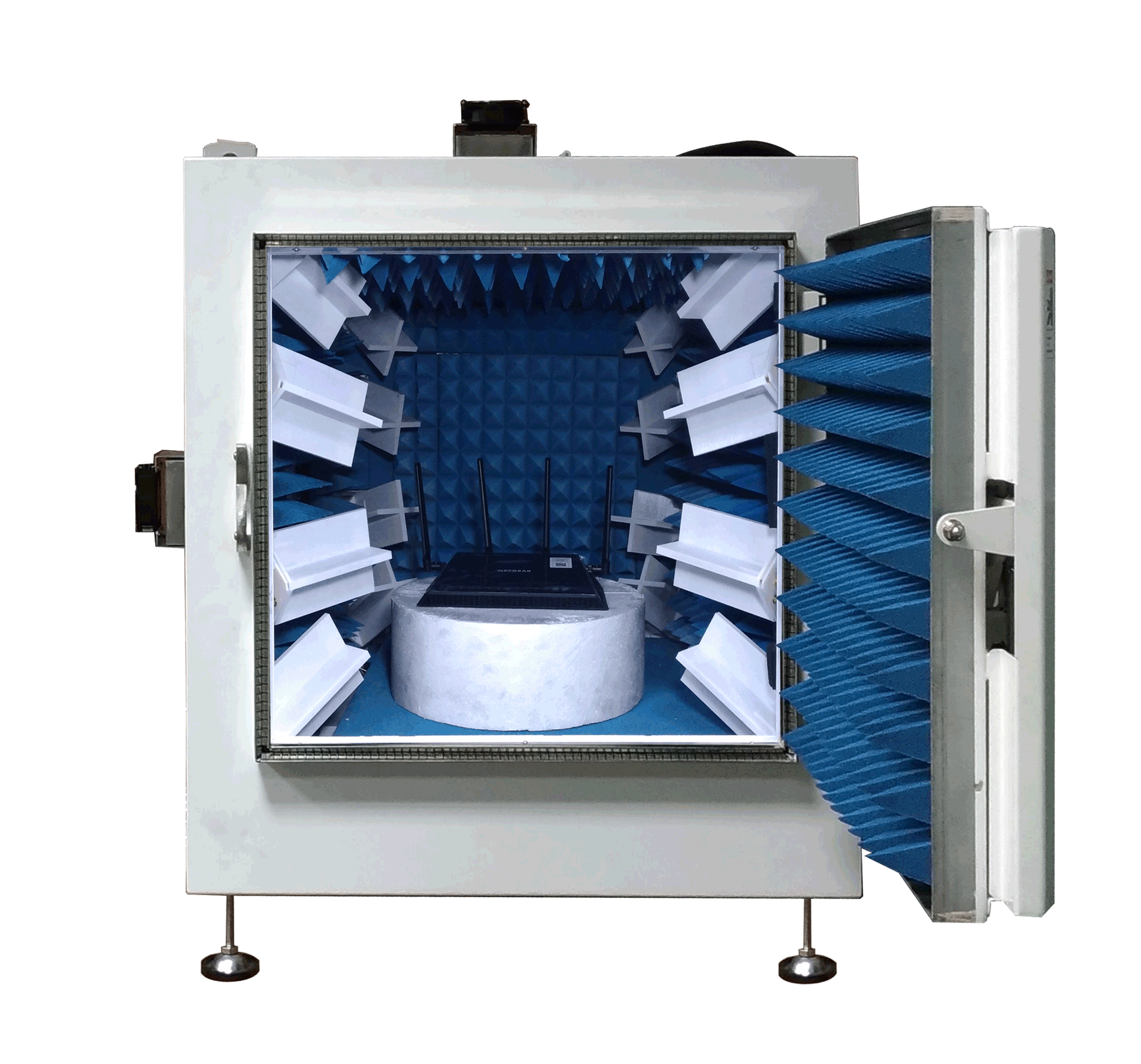

Small Box

Model: MIMO-26

Frequency: 0.7GHz~6GHz

Dimensions:

80(L)x80(W)x95(H)cm

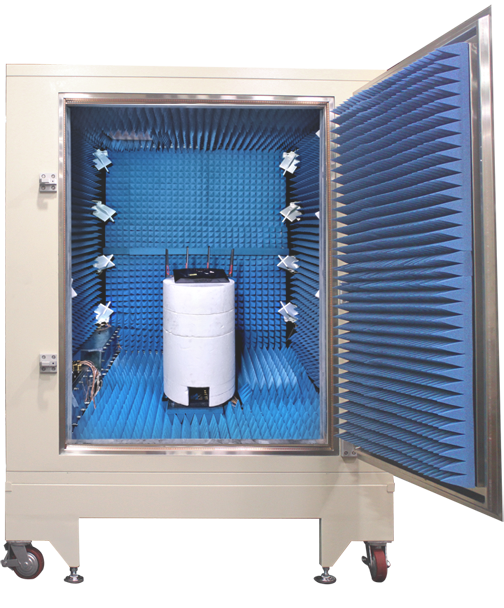

Large Box

Model: MIMO-37

Frequency: 0.7GHz~6GHz

Dimensions:

160(L)x130(W)x200(H)cm

TRC MIMO BOX Support event

Specifications	802.11ax	TRC MIMO BOX
Frequency Bands	2.4 GHz 與 5 GHz	Support
Channel Bandwidths	20 MHz、40 MHz、80 MHz、80+80 MHz 與 160 MHz	Support
FFT sizes	256, 512, 1024, 2048	Support
Subcarrier spacing	78.125 kHz	Support
OFDM symbol duration	12.8 us + 0.8/1.6/3.2 us CP	Support
Modulation scheme (Highest)	1024-QAM	Support
Data rates	600.4 Mbps (80 MHz，1 SS) 9607.8 Mbps (160 MHz，8 SS)	Support (Most for 16SS)

Accessories

TRC Vivaldi Antenna

Model: DPVA (700M-6G)

Frequency Range: 700MHz~6 GHz

隔離箱內建專為OTA測試水平垂直同時發射或接收訊號的雙極化天線

Interface Filter

(1)

SMA *16

(2)

AC Power (Max

110~220V, 6/3A ) *1

(3)

USB port *2

(4)

LAN port *2

(5)

D-SUB 9port (COM) *1

(6)

D-SUB 15port (VGA) *1

MIMO Box Option

20dB TDD Amplifier

for Over the Air

Most of testing facilities are Designing for conductive measurement and the Tx Power are less than 0dBm, the 20dB Amplifier provide +17dBm output for OTA application.

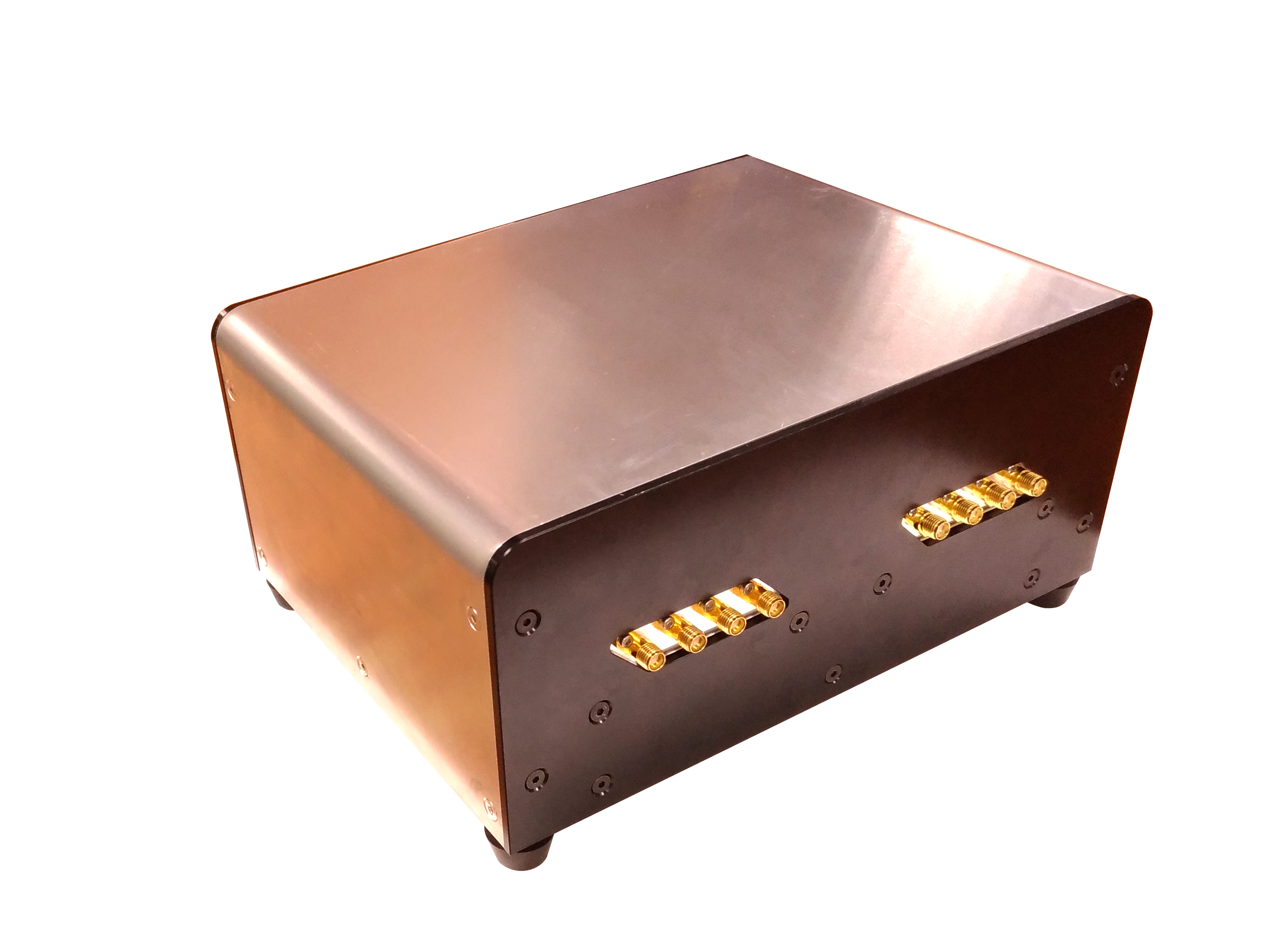

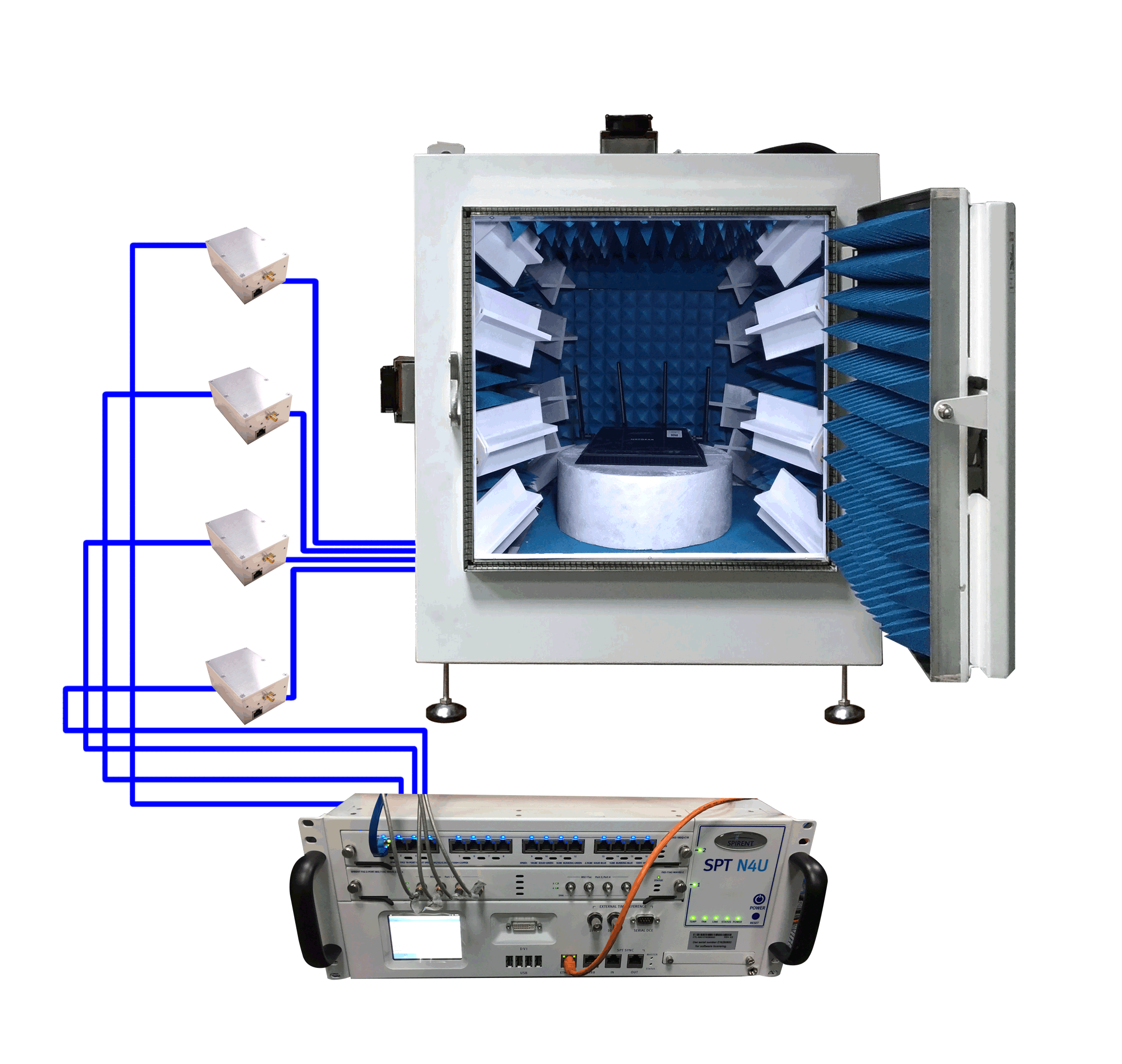

8 Ports Butler Matrix

Applied in MIMO Box for middle Path Loss Multi User MIMO capability and Highest Path Loss Beamforming function improve throughput rate measurement and maximum up to 8 spatial streams.

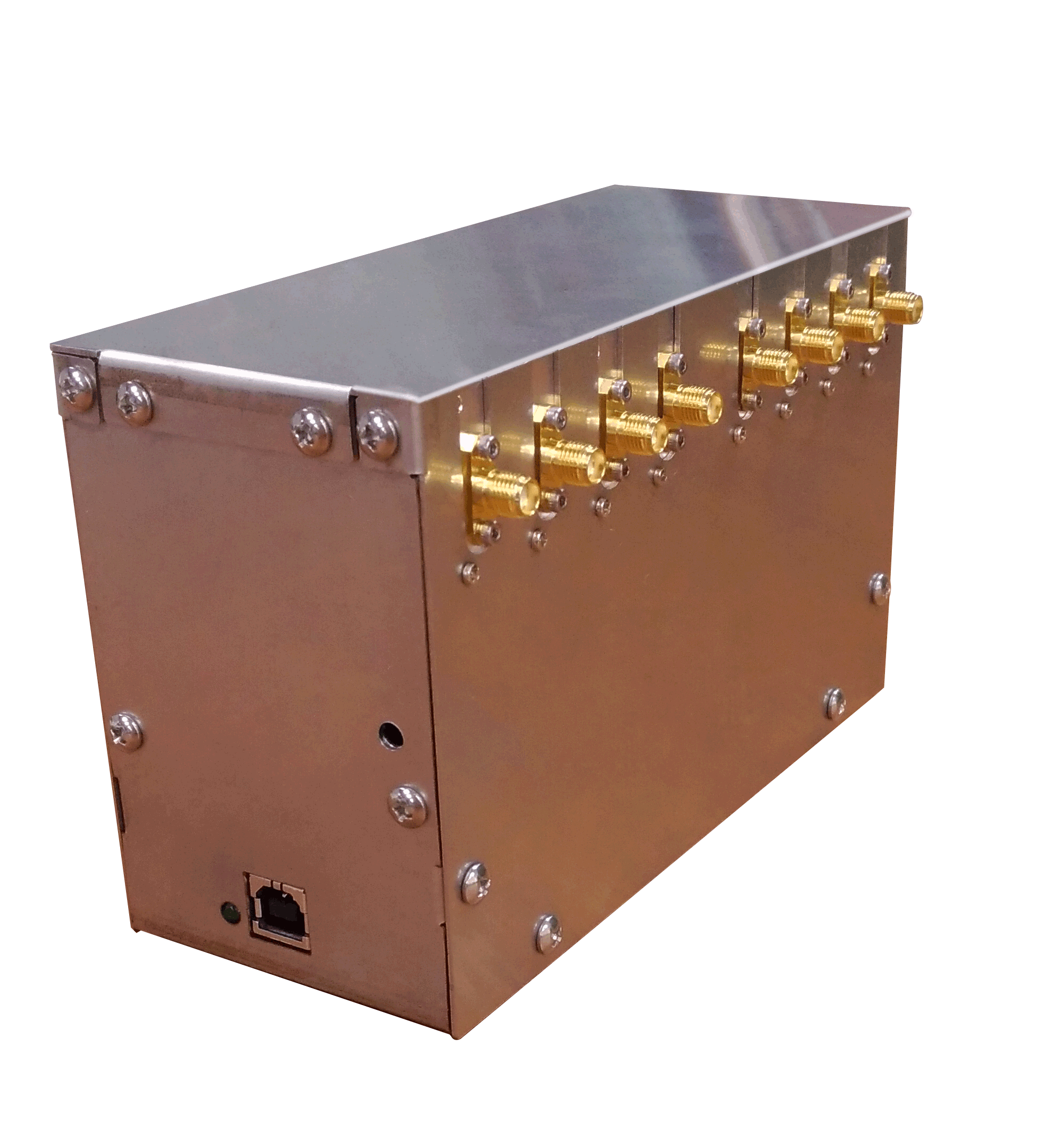

8 Ports Programmable Attenuators

Independent programming each Attenuator Loss for configure the roaming condition.

Maximum provide 8 clients the each with 1 spatial stream.
