產品

中文名稱

型號

Model No.

3 種尺寸(不含柱高)

Dimensions

Original version

Interface filter

USB 3.0 version

Interface filter

Frequency Range

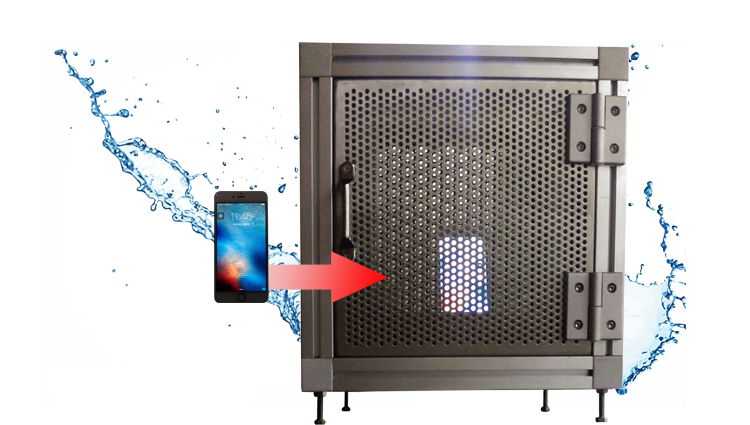

Environmental Box

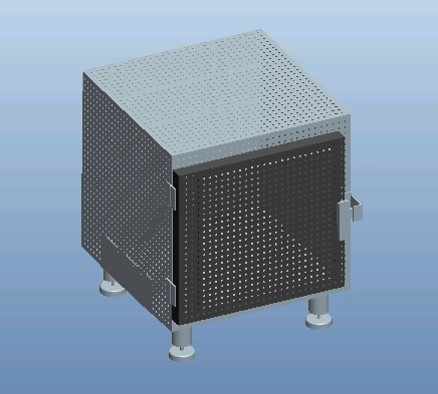

EN Box

50cm(D)*50cm(W)*50cm(H)

40cm(D)*40cm(W)*40cm(H)

60cm(D)*60cm(W)*60cm(H)

AC Power×1

USB 2.0 Port×2

LAN Port×2

D-SUB 9 Port×1

D-SUB 15 Port×1

AC Power×1

USB 2.0 Port×2

LAN Port×2

USB 3.0 Port×1

D-SUB15 Port×1

700MHz to 6GHz

Power

110V / 220V

特色Features

應用

1.輕巧體積設計-公司收納方便

2.網洞外觀-直接觀察待測物狀況

3.可模擬環境測試(溫度、濕度等)

4.磁鐵吸附門-開關方便

5.防水防鏽

RUN IN測試 手機、APP、雷達以及其他無線產品

(WiFi, Z-wave, Bluetooth, ZigBee, RFID, Femtocell, AP等)

網洞箱設計可讓研究者直接觀察待測物的受測情況，並進行模擬實際環境的溫度、濕度以及其他環境測試，並控制輻射信號的大小，讓研究者方便評估產品的無線效能、軟硬體的相容性以及觀測模擬消費者的使用情形。

Application

Description

RUN IN Test for smart phone, APP, radar and other wireless product (WIFI, Z-wave, Bluetooth, ZigBee, RFID, Femtocell, AP etc.)  The net-hole sell design could help engineer to observe direct the DUT in tested. Also it could make engineer convenient to do the environmental-measurement like the temperature & humidity while to control the eradiated signal for evaluating the wireless efficacy, hardware & software compatibility, and consumer usage status.

The whole set of TRC EN Box (with the enclosure, Filters, RF components) is Water Resistance. It can operate with high temperature/Humidity even heavy raining.

It can be good for MIMO client.
