| Introduction to PNS with VCCI Kit Module |
 TRC Platform Noise Scanner (PNS) provides X, Y, Z and W (4 axes) for near field probe measurement. Its performance complies with IEC-61967-6. The VCCI magnetic probe shown above can be installed in PNS. |

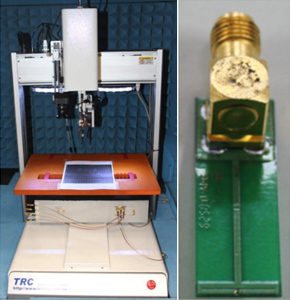

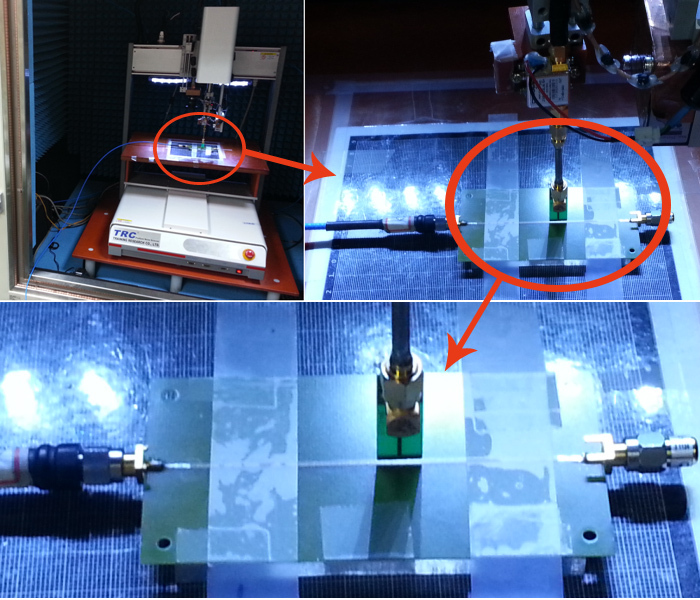

 The above diagrams show the overall looks of the TRC’s PNS, followed by a closer look at the VCCI magnetic probe. The bottom diagram is a close up of the calibration board with the probe. |
| Calibration Kit and Setup |

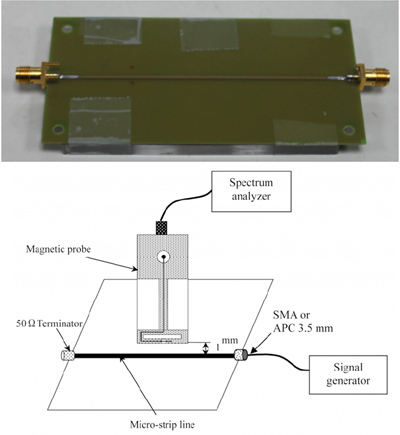

 The VCCI calibration board shown above complies with IEC-61967-6, and the calibration setup is also shown above. The distance between the edge of the magnetic probe and calibration board is 1mm. |

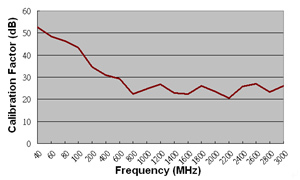

 The figure shown above represents the calibration factor of VCCI kit module. |
| Examples of Noise Measurement Using VCCI Kit Module |

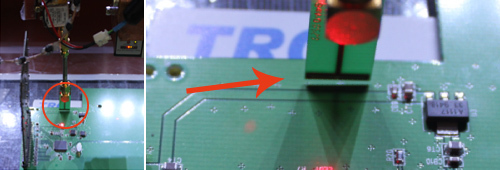

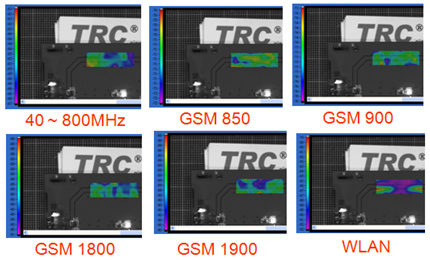

 The test setup for PNS with VCCI kit module is shown above. The distance between the edge of the magnetic probe and DUT is 1mm, and the examples for the test results are shown in the figure at the right hand side. |
 |
